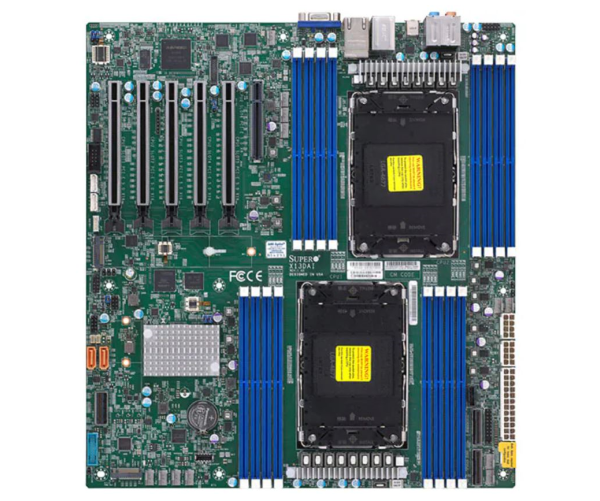

서버 마더보드 X13DAI-T

Duel Socket (4th Gen Intel® Xeon® Scalable) 마더보드 X13DAI-T

서버 마더보드 X13DAI-T

  • 4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677
    (Socket E) , CPU TDP supports up to 350W TDP
  • Support CXL
  • Intel® C741 Chipset
  • Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM
    slots
  • Broadcom BCM57416 Dual ports 10G LAN
  • 2 SATA DOM ports
  • 2 M.2
  • 4 NVMe ports PCIe 5.0 x4 via 2 MCIO connectors
  • 5 PCIe 5.0 x16
  • 1 PCIe 5.0 x8
  • 8 SATA 3.0 ports(C741, RAID 0, 1, 5, 10)
  • 1 USB 3.2 Gen 2, 8 USB3.2 Gen 1
  • HD Audio 7.1 channel
Specifications
Product SKUs
  • MBD-X13DAI-T



Physical Stats
Form Factor
  • EATX
Dimension
  • 12.1″ x 13.1″ (30.734cm x 33.274cm)



Processor
CPU
  • 4th Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core
  • Up to 60 cores



System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
  • 4800/4400/4000MHz ECC DDR5 RDIMM (3DS) 256GB 4800MT/s
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage 1.2V
Error Detection Detects double-bit errors (using ECC memory)



On-Board Devices
Chipset
  • Intel® C741
SATA
  • 8 SATA3 ports; RAID 0, 1, 5, 10
  • 2 SATA3 ports; RAID 0,1
Audio
  • 1x Realtek ALC888S 7.1 HD Audio port(s)Realtek ALC888S 7.1 HD Audio
  •
Network Controllers
  • Dual LAN with Broadcom BCM57416 10GBase-T



Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
  • 2 SATA3 (6Gbps) port(s)
USB
  • 1 USB 3.2 Gen2 port(s) (1 via header)
  • 2 USB 2.0 port(s) (2 via header)
  • 6 USB 3.2 Gen1 port(s) (4 rear type A; 2 via header)
Video Output
  • 1 VGA D-Sub Connector port(s)
TPM
  • 1 TPM Header
Others
  • 2 MCIO PCIe 5.0 x8



Expansion Slots
PCI-E
  • 1 PCIe 5.0 x8,
  • 5 PCIe 5.0 x16
M.2



  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key



System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2



Management
Software
  • SuperDoctor® 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN



PC Health Monitoring
Voltage
  • +5V standby, +5V, +3.3V, +12V, +3.3V standby
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • CPU thermal trip support
  • peripheral temperature
  • System temperature
  • Memory temperature
  • CPU temperature
  • PCH temperature
  • Platform Environment Control Interface (PECI)/(TSI)
  • Vcore
FAN
  • 13x 4-pin fan headers (up to 13 fans)
  • Fan speed control, Overheat LED indication, CPU thermal trip support, 13x fans with tachometer monitoring, Thermal Monitor 2 (TM2) support, PECI, Monitoring for CPU and chassis environment
Other Features
  • Node Manager Support
  • M.2 NGFF connector
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion detection
  • ACPI power management



Operating Environment
Operating Temperature Range
  • 10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)
