10x 2.5″ hot-swap HDDs 지원 1U Server chassis

BMS 1110-640(R)

1U Rackmount server chassis series with 640mm depth
Serverboard support up to standard EEB 12″x 13″, backward supports to CEB and below
Supports 1xfull-height full-length PCIe cards

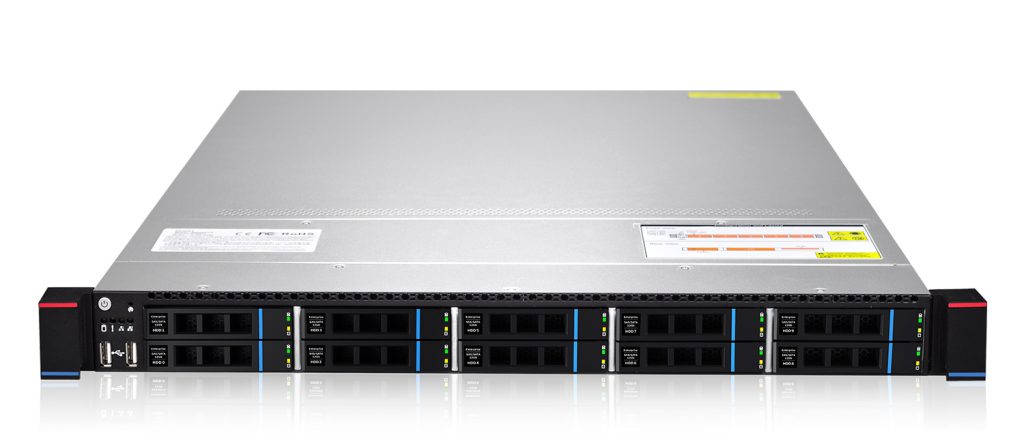

Front 10×2.5″ hot-swap HDDs
High-performance 4×4028 cooling fans with anti-vibration mechanism and optional up to 6×4056 middle fans
Smart system fan controlled by intelligent temperature management
12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
Supports 1U Single PSU or 1+1 Redundant PSU

Specifications

BMS 1110-640(R)
Chassis Form Factor	1U Rackmount
Serverboar	EEB (12″x13″), CEB (12″x10.5″), ATX (12″x9.6″) and micro ATX (9.6″x9.6″)
PSU Form Factor	1U Single or 1+1 Redundant
Backplane SGPIO	Supports
HDD Backplan	10-port 12Gb/s SAS passive backplane
HDD Drive Hot-swap	Supports SAS and SATA HDD, Front 10×2.5″ Hot-swap HDDs
Cooling Fans	Default 5×4028 middle fans (Max. 6×4056 by option)
Temperature Control	Supports system smart fan control by Serverboard
Expansion Slots	Default 1xfull-height PCIe cards support
Indicator	2x USB 2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm SGCC
Net Weight	7.3kg
Chassis Dimensions (HxWxD)	640mm x 433mm x 43mm
