8x 3.5″ or 2.5″ hot-swap HDDs 지원 2U Server chassis

BMS 2108-670

2U Rackmount server chassis series with 670 mm depth
Chassis supports up to standard EEB (12″x13″)

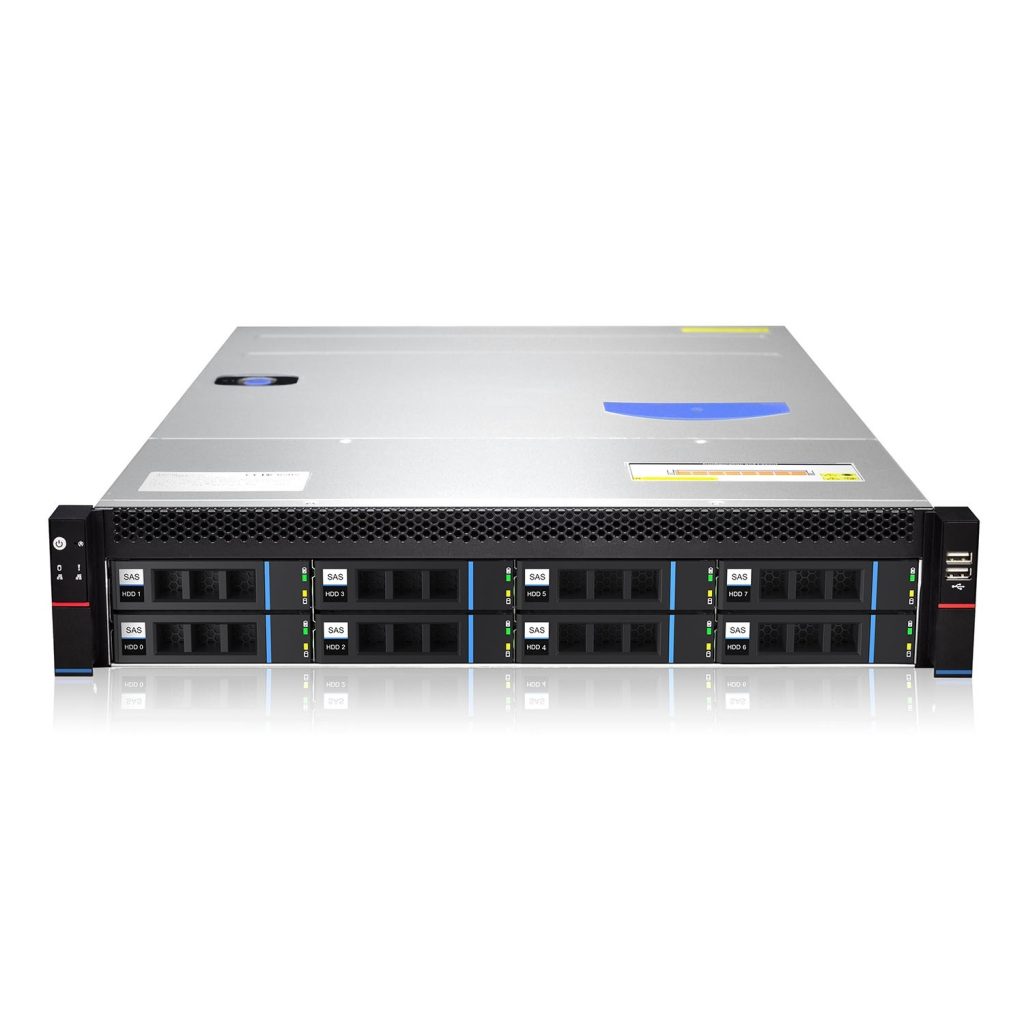

Front panel supports 8 * 3.5″ or 2.5″ hot-swap hard disks. (2 * 2.5″ non-hot-swap hard disk expansion bay-option)
Backplane supports 12 Gb/s speed, using high-quality & high-speed FR4 plate
The chassis backplane supports SGPIO function, visually showing the working status of the hard disk
Supports intelligent temperature control, solving the the problems of noise and heat dissipation of the chassis
High-performance 3 x 8038 cooling fans with anti-vibration mechanism
Supports 7 * half height or 3 * full height PCIe expansion cards
Supports CRPS Redundant power supplies and standard single power supply
The chassis is suitable for standard 19 inch Cabinet installation
Suitable for HPC, WEB, database, file and storage server

Specifications

BMS 2108-670
Chassis Form Factor	2U Rackmount
Serverboar	EEB(12″x13″), CEB(12″x10.5″), ATX(12″x9.6″) and microATX(9.6″x9.6″)
PSU Form Factor	2U Single or 1+1 Redundant (CRPS)
Backplane SGPIO	Supports
HDD Backplan	8-port 3.5″ 12Gb/s SAS passive backplane 2-port 2.5″ 12Gb/s SAS passive backplane (option)
HDD Drive Hot-swap	Front 8×3.5″ Hot-swap HDDs (2.5″ HDD compatible) Rear 2×2.5″ Hot-swap HDDs (option)
Cooling Fans	Default 3x 8038 Hot-swap middle fans (Max. 4×8038 by option)
Temperature Control	Supports system smart fans controlled by Serverboard
Expansion Slots	Default 7x low-profile PCIe Cards or optional 3x full-height PCIe Cards
Indicator	2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm SGCC, ABS Panel and Punching Hole Meshes
Net Weight	10kg
Chassis Dimensions (HxWxD)	88mm x 444mm x 670mm
