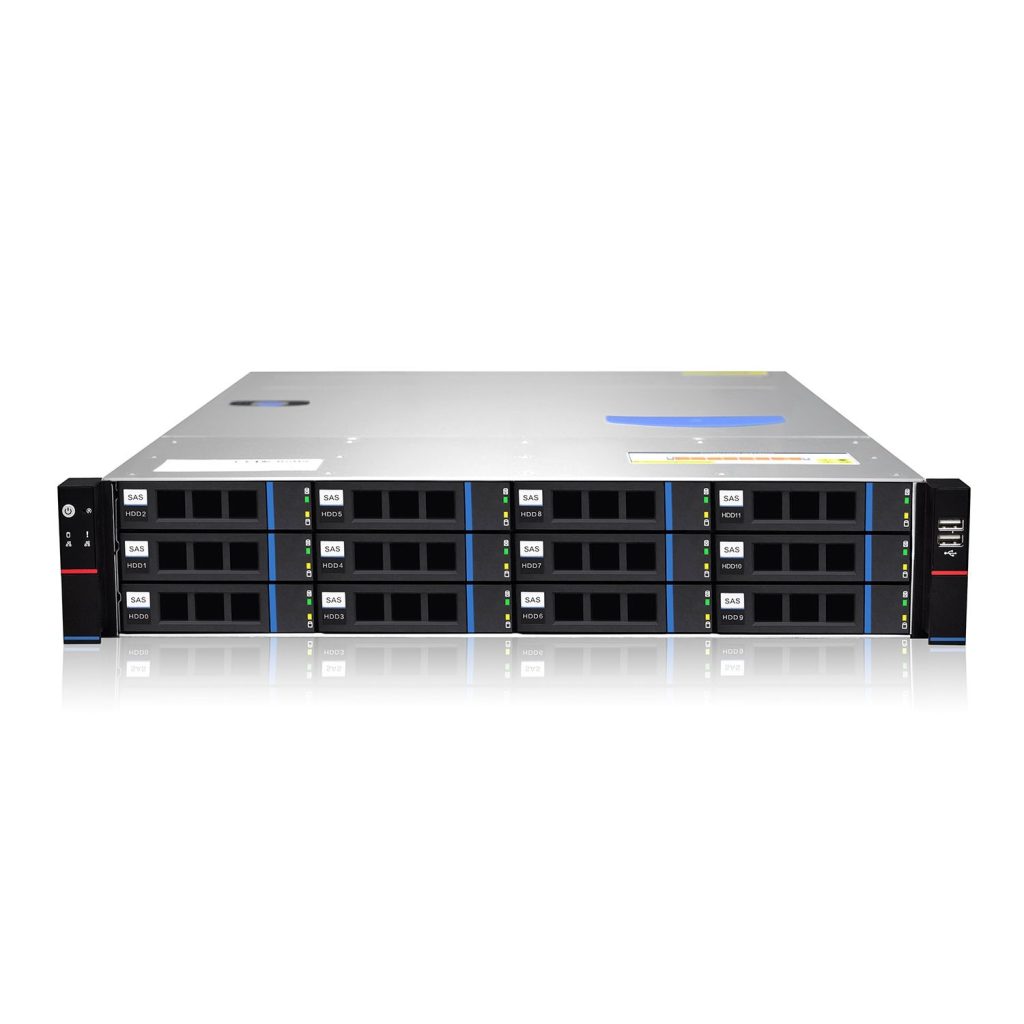

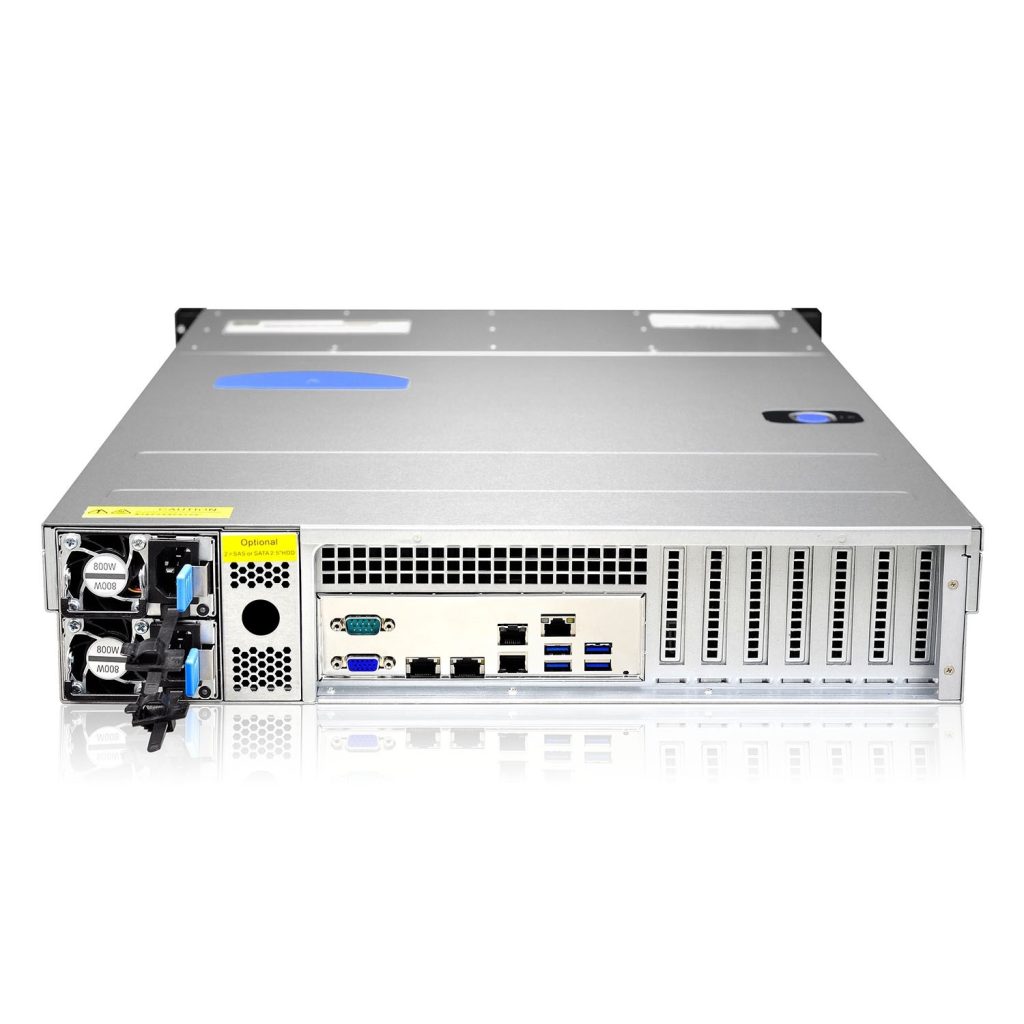

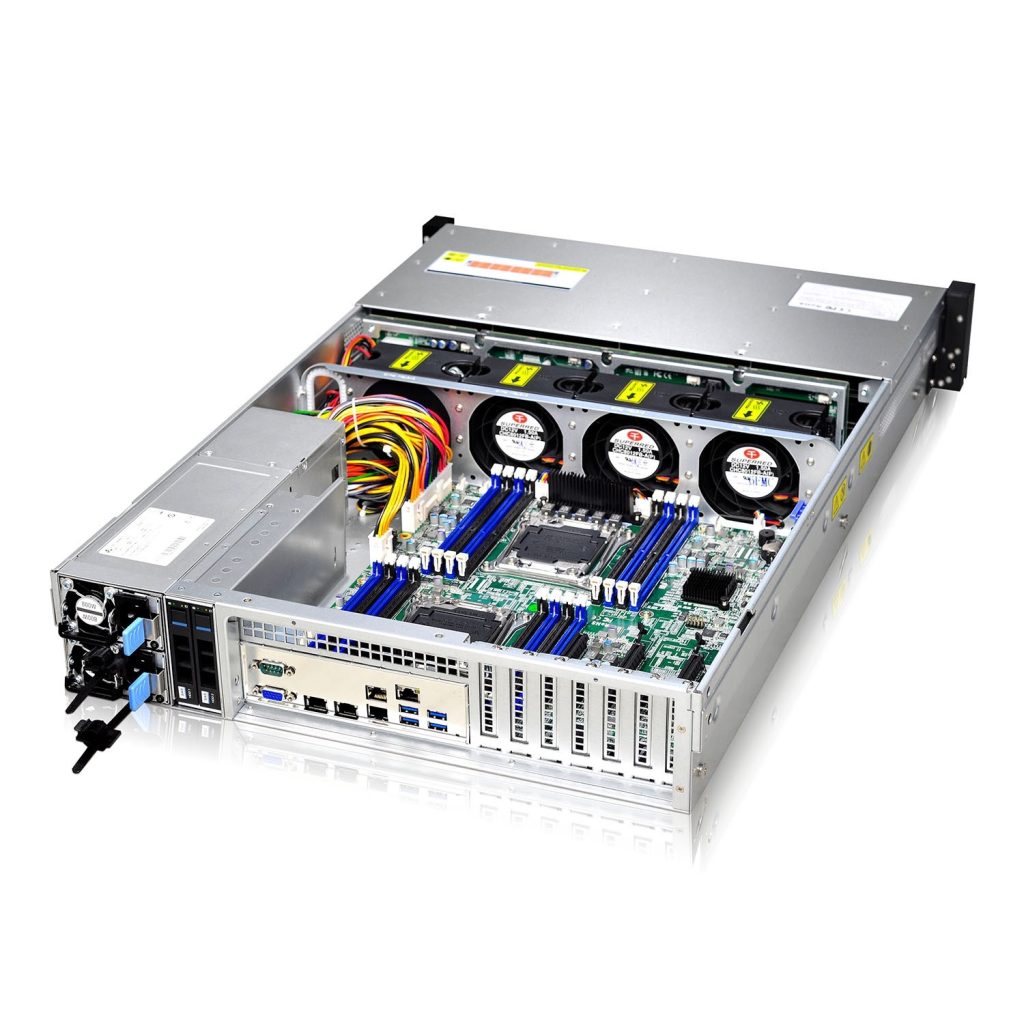

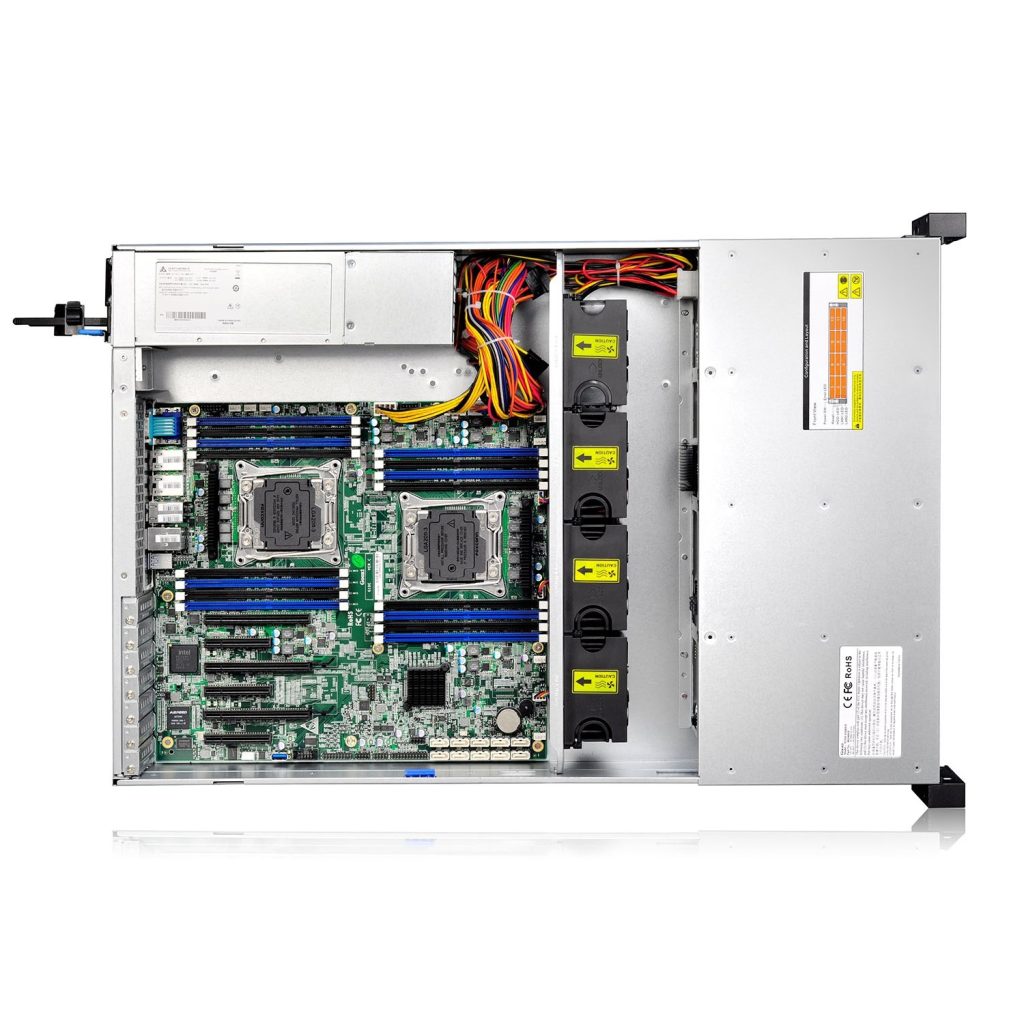

12x 3.5″ hot-swap HDDs 지원 2U Server chassis

BMS 2112-670

2U Rackmount server chassis series with 670mm depth
Serverboard supports up to standard EEB 12″x13″, backward supports to CEB and below
Supports default 7x low-profile or optional 3x full-height full-length PCIe cards
Front 12x 3.5″ hot-swap HDDs (2.5″ HDD compatible) and rear 2×2.5″ hot-swap HDDs
High-performance 3x 8038 cooling fans with anti-vibration mechanism Smart system fan control by intelligent temperature management
Standard 2.5″ SATA HDD/SSD accommodation and optional on-board eMMC
12Gb/s SAS Expander backplane with SGPIO, compatible with SAS and SATA HDDs

Specifications

BMS 2112-670
Chassis Form Factor	2U Rackmount
Serverboar	EEB(12″x13″), CEB(12″x10.5″), ATX(12″x9.6″), and microATX(9.6″x9.6″)
PSU Form Factor	2U Single or 1+1 Redundant (CRPS)
Backplane SGPIO	Supports
HDD Backplan	12-port 3.5″ 12Gb/s SAS Expander backplane 2-port 2.5″ 12Gb/s SAS passive backplane (option)
HDD Drive Hot-swap	Front 12×3.5″ Hot-swap HDDs (2.5″ HDD compatible) Rear 2×2.5″ Hot-swap HDDs (option)
Cooling Fans	Standard 3×8038 Hot-swap fans (Maximum 4x 8038 by option)
Temperature Control	Supports system smart fan control by Serverboard
Expansion Slots	Default 7x low-profile PCIe Cards or optional 3x full-height PCIe Cards support
Indicator	2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm SGCC
Net Weight	10.5kg
Chassis Dimensions (HxWxD)	88mm x 444mm x 670mm
