16x 3.5" hot-swap HDDs 지원 3U Server chassis

BMS 3116-670

3U Rackmount server chassis series with 670mm depth
Serverboard supports up to standard EEB 12″x13″, backward supports to CEB and below
Supports 7x full-height full length PCIe cards

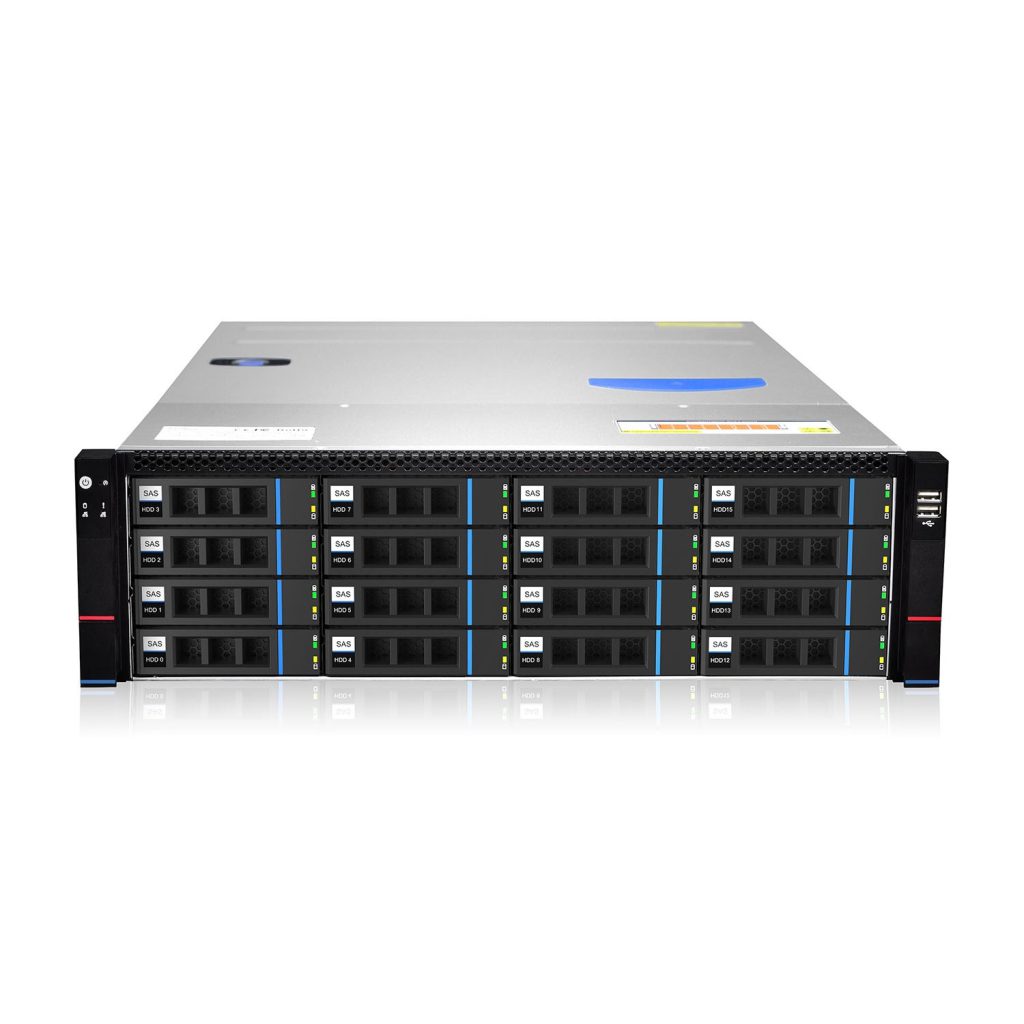

Front 16x 3.5″ hot-swap HDDs (2.5″ HDD compatible) and rear 2×2.5″ hot-swap HDDs
Additional 2×2.5″ internal HDDs support
High-performance 3×12038 cooling fans with anti-vibration mechanism
Smart system fan controlled by intelligent temperature management
Supports 2U Single PSU or 1+1 Redundant PSU
12Gb/s SAS Expander backplane, compatible with SAS and SATA HDDs

Specifications

BMS 3116-670
Chassis Form Factor	3U Rackmount
Serverboar	EEB (12″x13″), CEB (12″x10.5″), ATX (12″x9.6″), and micro ATX (9.6″x9.6″)
PSU Form Factor	2U Single or 1+1 Redundant (CRPS)
Backplane SGPIO	Supports
HDD Backplan	16-port 3.5″ 12Gb/s SAS Expander backplane 2-port 2.5″ 12Gb/s SAS passive backplane (option)
HDD Drive Hot-swap	Front 16×3.5″ Hot-swap HDDs (2.5″ HDD compatible) Rear 2x 2.5″ Hot-swap HDDs (option) Internal 2×2.5″ HDDs
Cooling Fans	Default 3×12038 Hot-swap middle fans
Temperature Control	Supports system smart fan controlled by Serverboard
Expansion Slots	Supports 7x full-height full-length PCIe cards
Indicator	2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm SGCC
Net Weight	15.5kg
Chassis Dimensions (HxWxD)	132mm x 444mm x 670mm
