24×3.5″, 2x 2.5″ hot-swap HDDs 지원 4U Server chassis

BMS 4124-670

4U Rackmount server chassis series with 670 mm depth

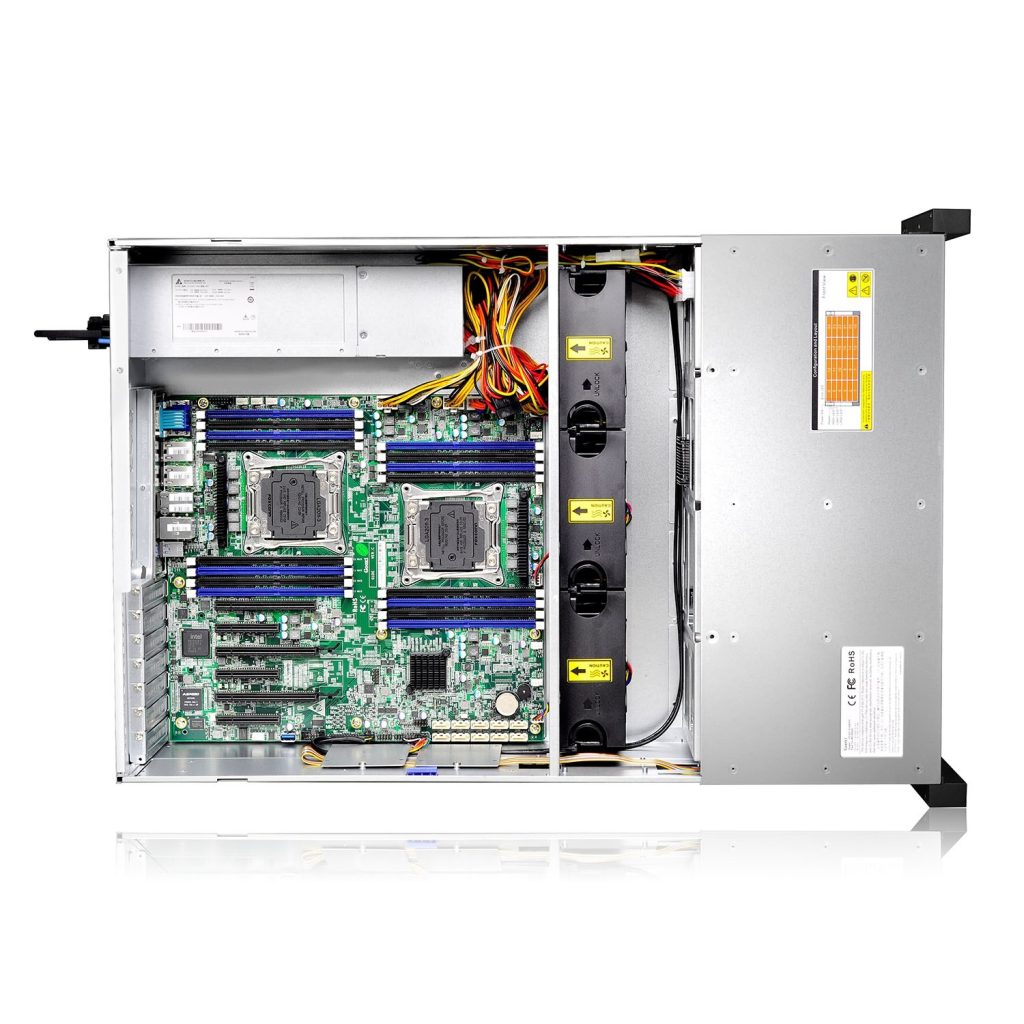

Serverboard supports up to standard EEB 12″x13″ and backward supports to CEB
Supports 7 x full height and full length PCIe cards

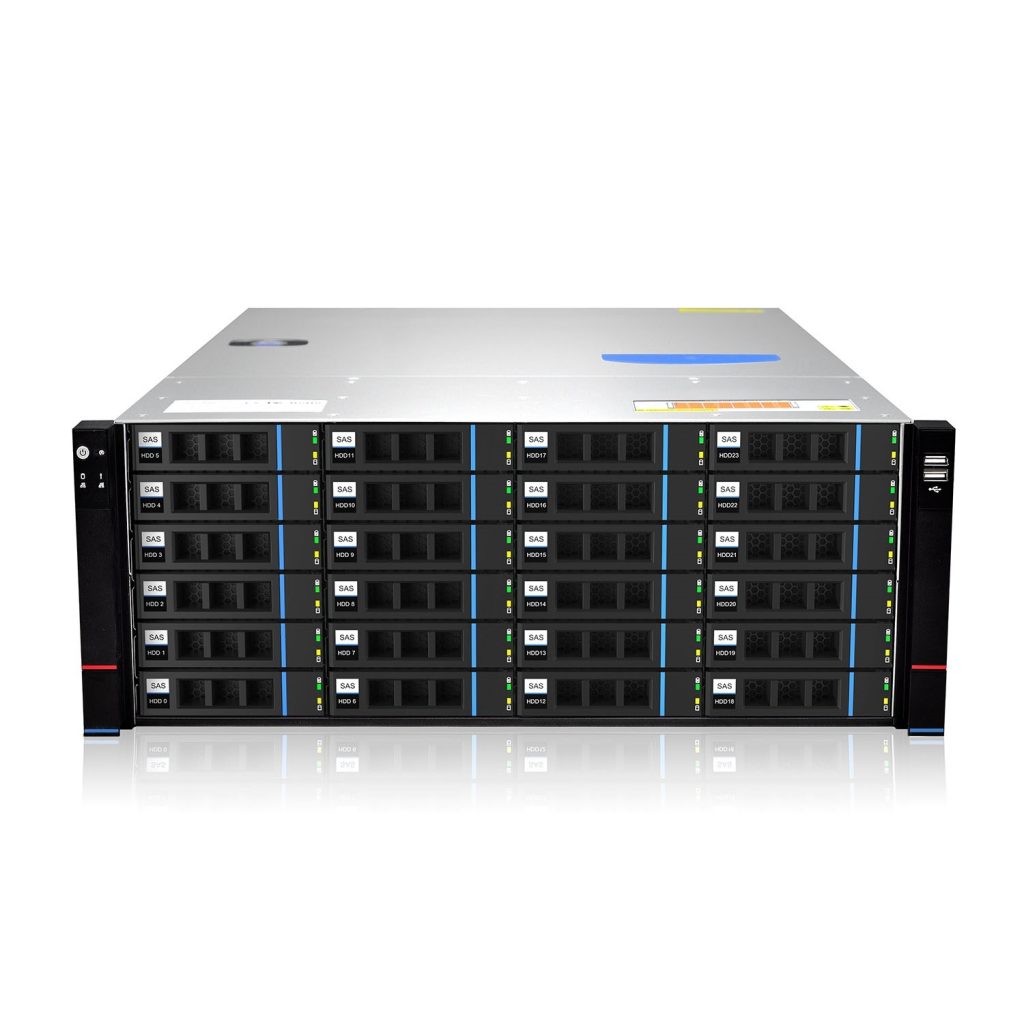

Front 24 x3.5″ hot swap HDDs (2.5″ HDD compatible) and rear 2 x2.5″ hot swap HDDs
High-performance 3 x12038 cooling fans with anti-vibration mechanism
Smart system fan controlled by intelligent temperature management

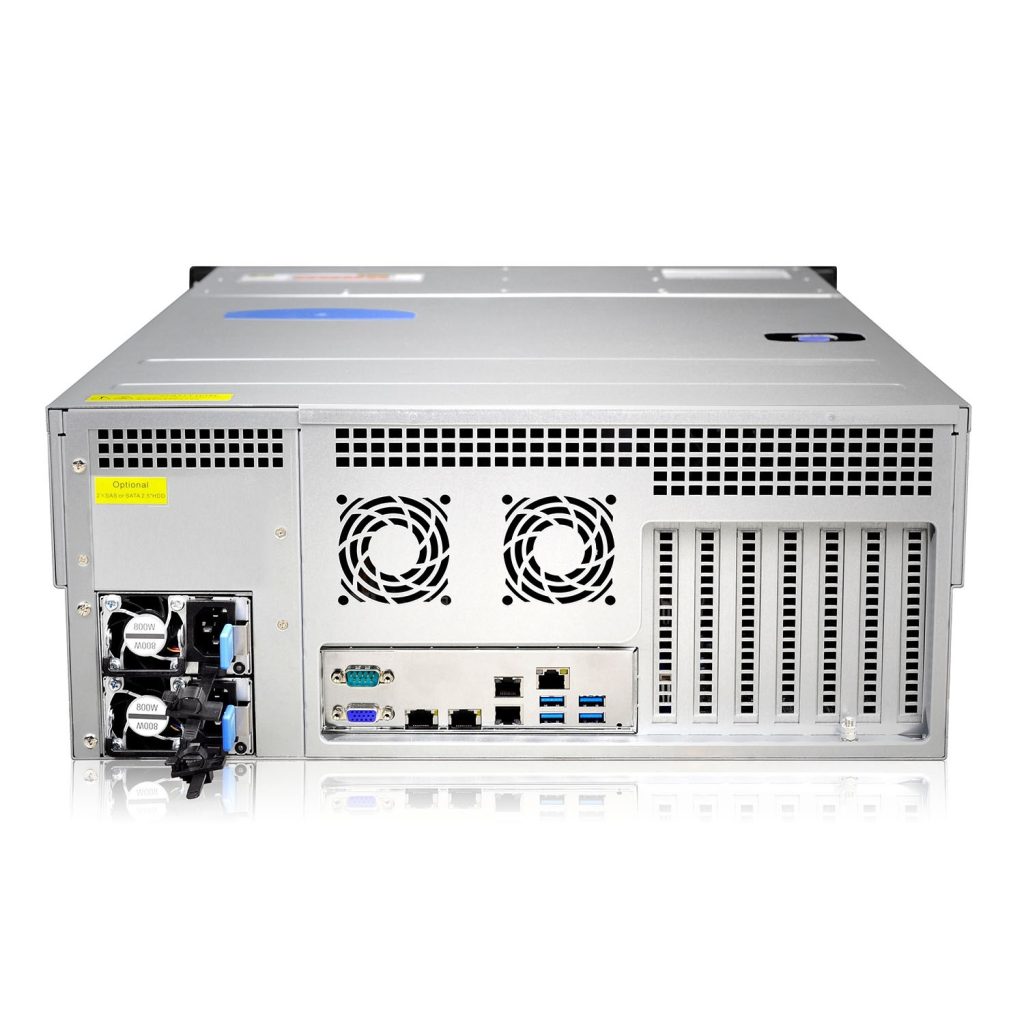

Supports 2U Single PSU or 1+1 Redundant PSU
12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs

Specifications

BMS 4124-670
Chassis Form Factor	4U Rackmount
Serverboar	EEB (12″x13″), CEB (12″x10.5″), ATX (12″x9.6″), and microATX (9.6″x9.6″)
PSU Form Factor	2U Single or 1+1 Redundant (CRPS)
Backplane SGPIO	Supports
HDD Backplan	24-port 3.5″ 12Gb/s SAS passive backplane 2-port 2.5″ 12Gb/s SAS passive backplane (optional)
HDD Drive Hot-swap	Front 24×3.5″ Hot-swap HDDs (2.5″ HDD compatible) Rear 2×2.5″ Hot-swap HDDs (option)
Cooling Fans	Default 3×12038 Hot-swap middle fans
Temperature Control	Supports system smart fan control by Serverboard
Expansion Slots	Supports 7x full-height full-length PCIe cards
Indicator	2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm thickness SGCC
Net Weight	18kg
Chassis Dimensions (HxWxD)	177mm x 444mm x 670mm
