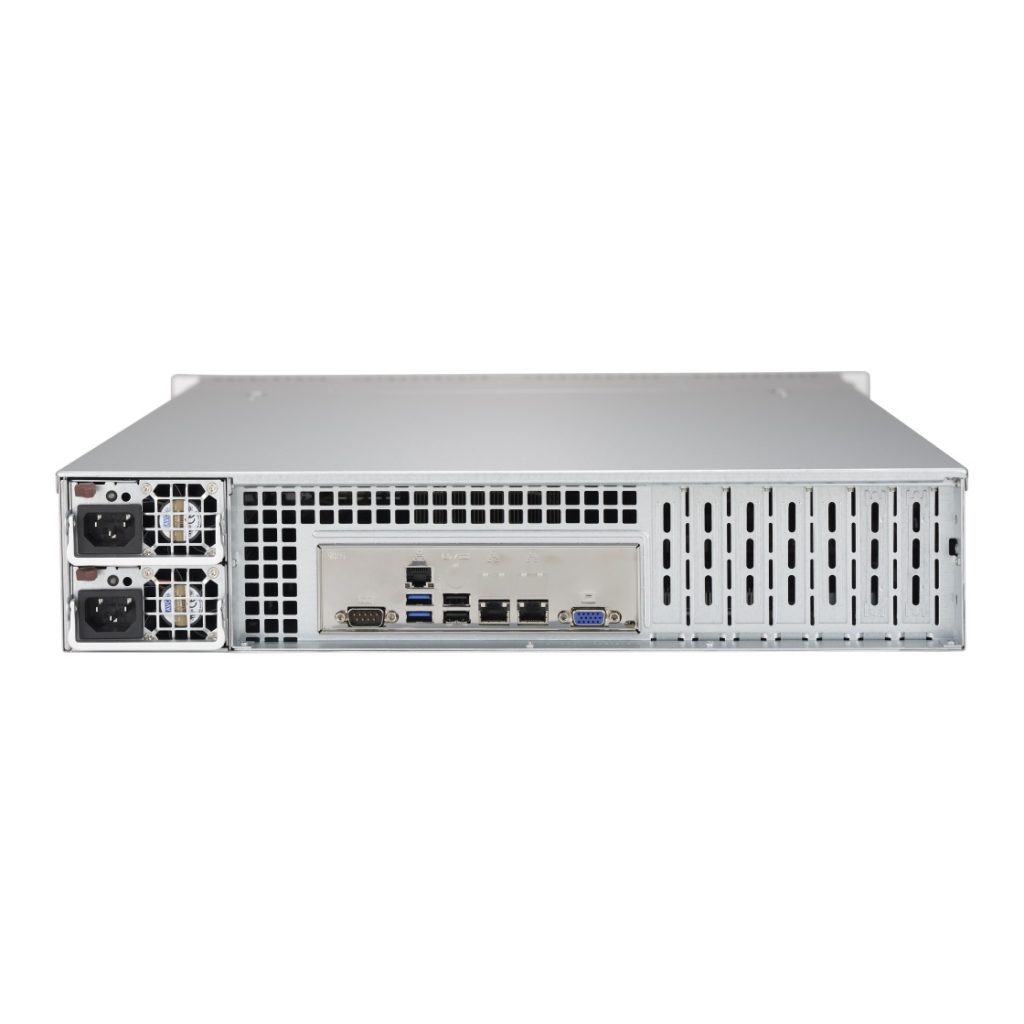

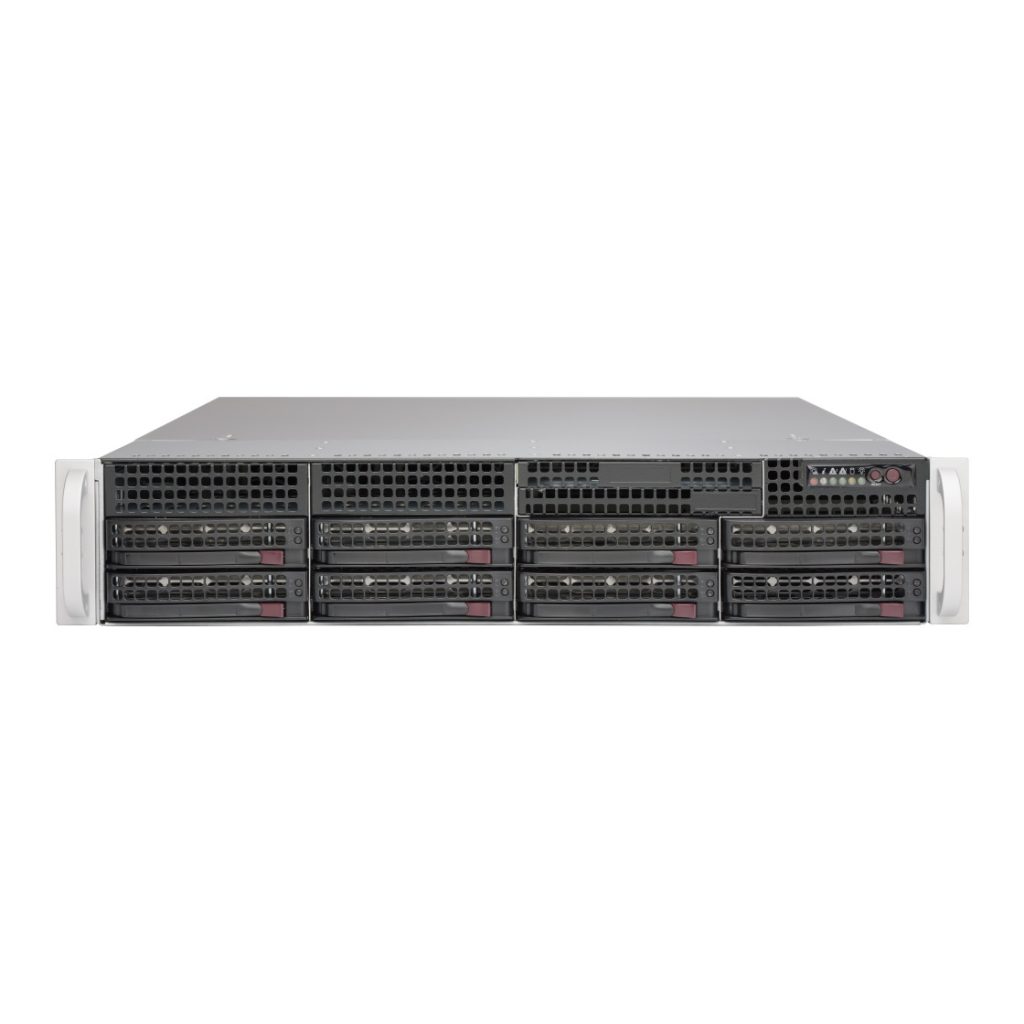

BMS 825TQC-R802LPB

Dual Power, 2CPU, 8x 3.5″ hot-swap HDD 지원 2U Server chassis

BMS 825TQC-R802LPB

  • 2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards
  • 8 x 3.5″ hot-swap SAS3/SATA drive bay, 2 x 3.5″ fixed drive bay
  • 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  • 7 low-profile expansion slot(s)
  • 3 x 80mm Hot-swap PWM Fans
Specifications
Product SKUs
  • SuperChassis 825TQC-R802LPB



Form Factor
  • 2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards



Processor Support
  • Dual and Single Intel® and AMD processors



Dimensions
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Gross Weight
  • 52 lbs (23.59 kg)
Available Color
  • black



Expansion Slots
  • 7x Low-profile expansion slot(s)



Drive Bays
  • 2x 3.5″ fixed drive bay
  • 8x 3.5″ hot-swap SAS3/SATA drive bay



Backplane
  • 8-Port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD



Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs



Systems Cooling
Fans
  • 3x 80mm Hot-swap PWM Fans



System Monitoring
  • Chassis intrusion switch



Operating Environment (System)
Operating Temperature Range
  • 5°C – 35°C (41°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)



Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 200 – 240Vdc
  • 800W with Input 100 – 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0A (100Vac – 240Vac)
  • Max: 66A / Min: 0A (200Vdc – 240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT825-8824
  • O/P: 12V/75
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified



Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
